Linear Track Actuators

$90.00 USD

Sale Sold out

Stroke - Gearing 100 mm 64:1 12 volts 200 mm 64:1 12 volts 300 mm 64:1 12 volts

Quantity

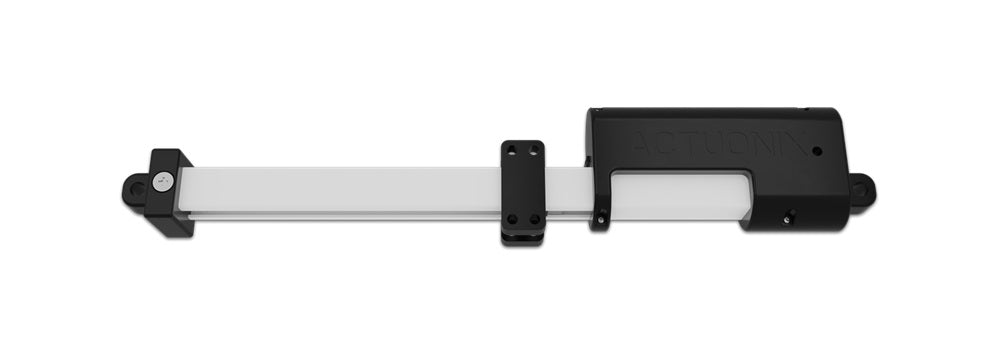

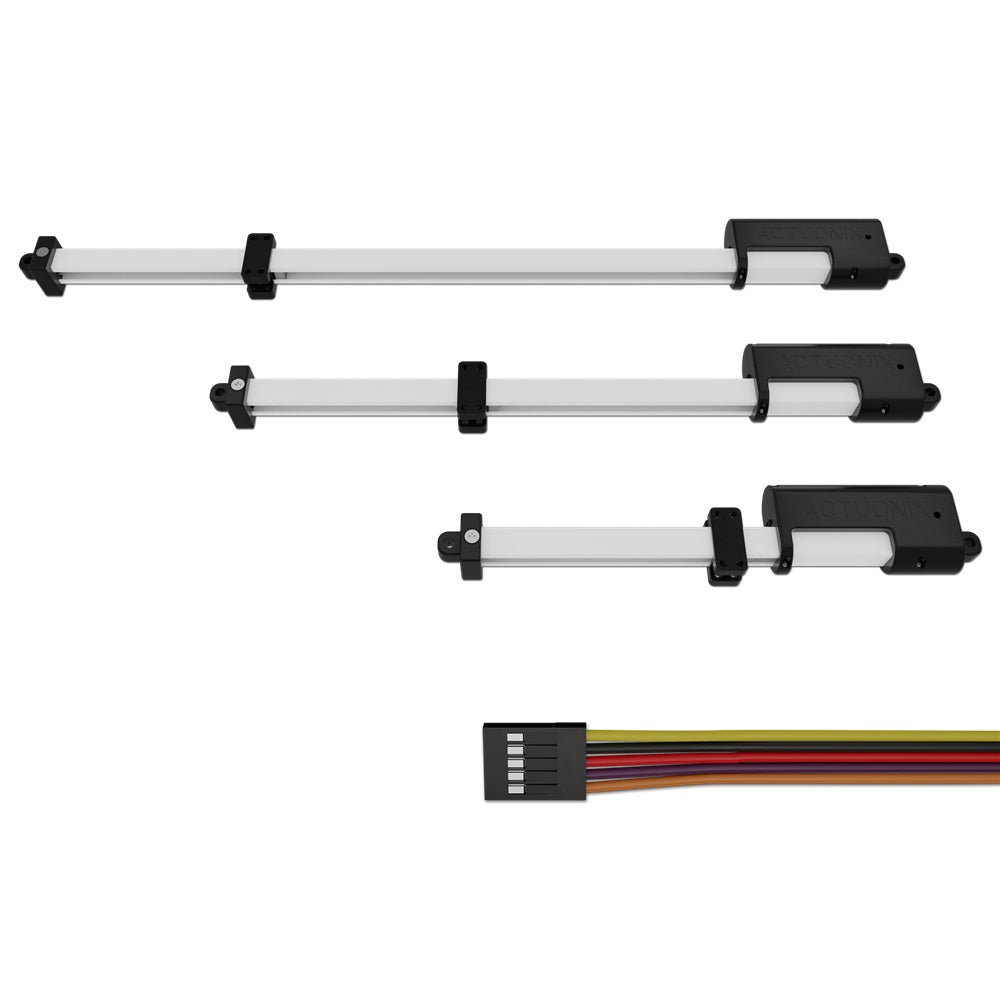

Linear track actuators are engineered for straightforward and efficient operation. Motion back and forth is achieved simply by switching the polarity on the actuator's two leads.

A key safety feature of this series is the integration of end-of-stroke limit switches. These switches are designed to automatically shut down the unit if it reaches its end stop, thereby preventing damage or over extension.

Can be operated using a DPDT switch, a relay or a brushed DC motor controller, offering flexibility in integrating different control systems.

How Long Will a Linear Actuator Last ?

This is an impossible question to answer as there are dozens of factors that affect actuator lifespan including load, side load, duty cycle, input voltage and environmental conditions just to name a few. We encourage our customers to do their own testing to evaluate the lifespan of their particular application.
